Lactobacillus acidophilus induces a slow but more sustained chemokine and cytokine response in naïve foetal enterocytes compared to commensal Escherichia coli



The first exposure to microorganisms at mucosal surfaces is critical for immune maturation and gut health. Facultative anaerobic bacteria are the first to colonise the infant gut, and the impact of these bacteria on intestinal epithelial cells (IEC) may be determinant for how the immune system subsequently tolerates gut bacteria.


To mirror the influence of the very first bacterial stimuli on infant IEC, we isolated IEC from mouse foetuses at gestational day 19 and from germfree neonates. IEC were stimulated with gut-derived bacteria, Gram-negative Escherichia coli Nissle and Gram-positive Lactobacillus acidophilus NCFM, and expression of genes important for immune regulation was measured together with cytokine production. E. coli Nissle and L. acidophilus NCFM strongly induced chemokines and cytokines, but with different kinetics, and only E. coli Nissle induced down-regulation of Toll-like receptor 4 and up-regulation of Toll-like receptor 2. The sensitivity to stimulation was similar before and after birth in germ-free IEC, although Toll-like receptor 2 expression was higher before birth than immediately after.


In conclusion, IEC isolated before gut colonisation occurs at birth, are highly responsive to stimulation with gut commensals, with L. acidophilus NCFM inducing a slower, but more sustained response than E. coli Nissle. E. coli may induce intestinal tolerance through very rapid up-regulation of chemokine and cytokine genes and down-regulation of Toll-like receptor 4, while regulating also responsiveness to Gram-positive bacteria.


The human gastrointestinal (GI) tract, the largest surface area of the body in contact with the environment, is lined by a single layer of intestinal epithelial cells (IEC). In adults, the GI tract is colonised by more than 1014 microorganisms comprising more than 500 different phylotypes [1]. The gut microbiota is pivotal for the development and maintenance of intestinal immunological homeostasis. The intestinal epithelium plays key roles in maintaining this immune homeostasis in the gut as an active player in maintaining tolerance to the microbiota and food antigens as well as in pathogen combat.

The GI tract of the foetal baby is sterile, but colonisation starts immediately after birth with bacteria from the mother and the environment and, within a few days, it is colonised by numerous bacterial species. These pioneer bacteria have been shown to modulate gene expression in IEC including genes involved in metabolism, absorption, barrier function and IEC maturation [2]. Colonisation at birth by facultative anaerobes, such as enterobacteria, coliforms, lactobacilli and streptococci, creates a reducing environment during the first week of life enabling colonisation by strict anaerobes including bifidobacteria, bacteroides, clostridia and eubacteria [3]. This microbial colonisation contributes to recruitment of immune cells to the GI tract and may furthermore be a major contributor to establishment of the systemic immune system [4, 5]. Thus colonisation in early infancy is crucial in relation to the final composition of the permanent microbiota in adults and also in inducing intestinal and immunological maturation.

IEC sense commensals through expression of pattern recognition receptors (PRRs) recognising conserved microbial structures. The IEC respond by secreting a wide range of chemokines that recruit immune cells to the GI tract, and cytokines that affect the immune cells scattered in the GI tract including DC, macrophages and lymphocytes [69]. Due to the heavy bacterial antigen load in the lumen, the expression of PRRs is tightly regulated in IEC. IEC express Toll-like receptor (TLR) 1-9 [10], nucleotide-binding oligomerisation domain (NOD) 1 and NOD2 [11]. However, contradicting data from cell line studies on the expression of TLRs in IEC exist. Several reports demonstrate that IEC are non-responsive towards lipopolysaccharide (LPS) and express no or very low levels of TLR4 [12, 13], while other groups have reported the presence of TLR4 [10, 14, 15]. This discrepancy may be explained by the finding that IEC gain a cross-hyporesponsive phenotype after stimulation with either LPS or lipoteichoic acid due to decreased signalling through TLR2 and TLR4 [10]. Cario et al. elegantly demonstrated that both TLR2 and TLR4 are constitutively expressed apically in an IEC cell line but traffic to cytoplasmic compartments after ligand stimulation [14]. IEC isolated from intestinal tissue express Tlr2 and Tlr4 mRNA but at low levels both in humans [16] and mice [17]. Knowledge on IEC responses to microbe-associated molecular patterns (MAMPs) is to a large extent based on cell line studies as cell lines are naïve to MAMP stimulation. However, cell lines may not entirely reflect IEC responses at birth.

Besides playing a role in the recruitment and maturation of immune cells in the GI tract, the bacteria colonising the sterile gut probably induce tolerance dependently on TLR-activation [18]. In this respect, the MAMPs present in the first-coming species might be crucial in tolerance development. It was recently demonstrated that, although both foetal and neonatal IEC express the TLR4/MD-2 receptor complex, they differ dramatically in their responsiveness to LPS, and it was suggested that intestinal bacterial colonisation in the newborn is facilitated by postnatal establishment of IEC tolerance towards LPS stimulation [19]. Moreover, IEC help maintaining the specialised intestinal tolerogenic environment through secretion of different mediators, such as thymic stromal lymphopoietin (TSLP) and transforming growth factor (TGF)-β and commensals differentially affect TSLP and TGF-β production [20, 21]. Thereby the composition of the microbiota indirectly affects immune cells through effects on IEC.

We hypothesized that the very first bacteria encountered by naive IEC influence the signal molecules released to the gut environment, and that Gram-positive (G+) commensals prime IEC differently from Gram-negative (G-) commensals and LPS. Moreover, the developmental state of the IEC may play a role in their responsiveness, and this study is the first to compare foetal and neonatal germfree murine IEC responsiveness to G+ (Lactobacillus acidophilus) and G- (Escherichia coli) commensals in vitro. We present indices that the type of bacterial stimulus indeed affects gene expression in naïve primary IEC, thus suggesting an important role of the first postnatal bacteria for immune cell recruitment and tolerance induction in the GI tract.


L. acidophilus and E. coli strongly induce chemokine gene expression in foetal primary epithelial cells in vitro

In the first days of life, recruitment of immune cells to the gut is probably one of the most important aspects of gut immune maturation. In this respect, IEC play a pivotal role by secreting chemokines attracting specific immune cells. We speculated that the composition of the gut microbiota affects this maturation process by affecting the chemokine expression in IEC, and therefore studied how expression of a set of chemokines in foetal near-term IEC was affected by in vitro bacterial stimulation with two gut-derived commensals (Figure 1). As representatives of gut G+ and G- commensals we chose E. coli Nissle and L. acidophilus NCFM [22] as these strains in earlier studies were found to be potent stimulators of epithelial cell lines [21]. E. coli was most potent in up-regulating Cxcl1, Cxcl2, Ccl2 and Ccl3 encoding keratinocyte-derived chemokine (KC), macrophage-inflammatory protein (MIP)-2, monocyte chemoattractant protein (MCP)-1 and MIP-1α respectively. Generally, chemokine expression induced by E. coli did not increase from 2 to 4 h, whereas induction of Ccl3 (encoding MIP-1α ) by L. acidophilus reached transcription levels induced by E. coli only at 4 h.

Figure 1
figure 1

L. acidophilus and E. coli strongly induce chemokine expression in foetal primary epithelial cells in vitro. Epithelial cells from foetuses at Day-1 were stimulated for 2 h and 4 h with LPS (10 μg/ml), L. acidophilus NCFM (10, 30 and 100 μg/ml) or E. coli Nissle (1, 10, 30 μg/ml). Gene expression was measured by RT-PCR. Symbols indicate mean fold increase and SD of 4 independent experiments with cells pooled from 6-10 pups. ***p < 0.001, **p < 0.01, *p < 0.05 compared to "unstimulated cells". Data were normalised to Actb and then to the average of "unstimulated cells 2 h" from the 4 experiments, which was defined to 1.

L. acidophilus and E. coli up-regulate gene expression of pro-inflammatory and regulatory cytokines in foetal epithelial cells in vitro

As opposed to chemokine production, cytokine secretion by primary IEC upon bacterial stimulation via their PRRs remains poorly described. Hence we evaluated how L. acidophilus and E. coli modulate the cytokine environment upon engagement of PRRs in vitro in foetal IEC (Figure 2). L. acidophilus and E. coli induced expression of interleukin (Il)6, Il10 and tumour necrosis factor (Tnf) in a dose-dependent manner. E. coli and LPS induced Il6, Il10 and Tnf faster than L. acidophilus. After 4 h of stimulation, the expression of Il6 and Tnf induced by L. acidophilus reached levels induced by E. coli. Induction of Il10 by E. coli peaked at 2 h while Il10 induction by L. acidophilus was strongest at 4 h. These differences might imply differences in the kinetics of the two distinct PRR signalling pathways, with signalling through TLR4 being faster than signalling through TLR2. TGF-β and TSLP are known to be secreted by IEC and to induce a tolerogenic DC phenotype [21], hence we also looked at transcription of genes encoding TSLP and TGF-β1. Expression of Tgfb1 was not significantly changed upon in vitro stimulation with either bacteria (data not shown), while low concentrations of E. coli modestly up-regulated expression of Tslp and the highest concentration of L. acidophilus down-regulated expression of Tslp at 4 h.

Figure 2
figure 2

L. acidophilus and E. coli up-regulate expression of pro-inflammatory and regulatory cytokines in foetal epithelial cells in vitro. Epithelial cells from foetuses at Day-1 were stimulated for 2 h and 4 h with LPS (10 μg/ml), L. acidophilus NCFM (10, 30 and 100 μg/ml) or E. coli Nissle (1, 10, 30 μg/ml). Gene expression was measured by RT-PCR. Symbols indicate mean fold increase and SD of 4 independent experiments with cells pooled from 6-10 pups. ***p < 0.001, **p < 0.01, *p < 0.05 compared to "unstimulated cells". Data were normalised to Actb and then to the average of "unstimulated cells 2 h" from the 4 experiments, which was defined to 1.

Foetal epithelial cells produce cytokines upon in vitro stimulation with Gram-positive and Gram-negative commensals with different kinetics

As cytokine production by IEC has been reported to be low [17], we wished to validate the high increases in expression of Il6, Tnf and Il10 by measuring protein secretion from in vitro stimulated foetal IEC by enzyme-linked immunosorbent assay (ELISA) at 2 h, 4 h and 18 h of culture (Figure 3). We also measured MIP-2, known to be secreted by IEC [19]. Production of the four proteins correlated well with the transcription levels shown in Figure 1 and 2, as expression of all genes in IEC stimulated with L. acidophilus was increasing from 2 h to 4 h, and protein concentrations after 18 h culture were highest for these cells. For E. coli-stimulated cells, gene expression was increasing (Il6), maintained (Tnf and Cxcl2) and decreasing (Il10) over time and, accordingly, protein levels after 18 h were higher, unchanged, slightly higher and lower for IL-6, TNF-α , MIP-2 and IL-10, respectively, than at the early time points. The chemokine MIP-2 was produced in the highest amounts, but also significant amounts of the three cytokines were produced. The difference between the bacteria again points towards a later induction of certain immunological markers by L. acidophilus compared to E. coli. LPS induced a higher IL-10 production than E. coli after 18 h, perhaps reflecting that LPS-induced expression of Il10 was not decreasing from 2 h to 4 h as was E. coli-induced Il10 expression.

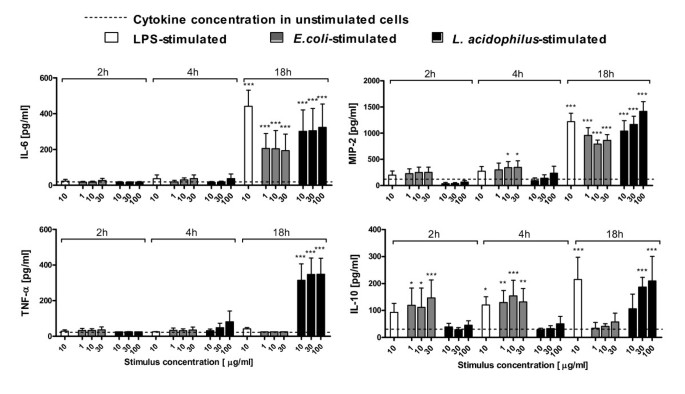

Figure 3
figure 3

Foetal epithelial cells produce cytokines upon in vitro stimulation with G+ and G- commensals with different kinetics. Cytokine and chemokine production in epithelial cells from foetuses at Day-1 after 2 h, 4 h and 18 h stimulation with LPS (10 μg/ml), L. acidophilus NCFM (10, 30 and 100 μg/ml) or E. coli Nissle (1, 10, 30 μg/ml) measured by ELISA. Symbols indicate mean and SD of 4 independent experiments with cells pooled from 6-10 pups. ***p < 0.001, **p < 0.01, *p < 0.05 compared to "unstimulated cells" represented by dotted lines.

E. coli is more potent than L. acidophilus in up-regulating Tlr2, Nfkb1, and Nfkb2 gene expression and in down-regulating expression of Tlr4 and Clec7a genes in foetal epithelial cells

When IEC sense bacteria, the first and primary interaction is between PRRs and their bacterial ligands. Signalling through the different cascades downstream of PRRs (MyD88 pathway or TIR-domain-containing adapter-inducing interferon-β (TRIF) pathway) then activates transcription of effector genes including genes encoding cytokines and chemokines. Hence, we evaluated the expression of genes encoding TLR2, TLR4, Dectin-1 and MD-2 in near-term foetal IEC after in vitro stimulation with E. coli Nissle and L. acidophilus NCFM. As depicted in Figure 4, E. coli (and pure LPS), even at a low concentration (1 g/ml), down-regulated expression of Tlr4 significantly. On the contrary, Tlr2 expression was strongly enhanced by E. coli with strongest effects after 4 h stimulation. Although their transcripts were detected in IEC, no changes in expression of the genes encoding MD-2 (Ly96), IRAK1, IKKβ or Tollip, all recognised to be important regulators of TLR4 signalling were observed (data not shown). Dectin-1 is a PRR known to recognise fungal β-1,3 and β-1,6 linked glucans, which in a Ca2+ independent manner enhances phagocytosis [23]. Dectin-1 is expressed by DC, monocytes, neutrophils, macrophages and in Caco2 IEC [24], but has not previously been studied in primary IEC. As shown in Figure 4, Clec7a encoding Dectin-1 was significantly down-regulated after 4 h stimulation with both LPS and E. coli. The down-stream signalling cascade after TLR activation involves nuclear factor (NF)κB. Both Nfkb1 and Nfkb2 were significantly up-regulated at 4 h upon E. coli stimulation, but this was not seen after stimulation with L. acidophilus.

Figure 4
figure 4

E. coli is more potent than L. acidophilus in up-regulating Tlr2, Nfkb1, and Nfkb2 expression and in down-regulating expression of Tlr4 and Clec7a in foetal epithelial cells. Epithelial cells from foetuses at Day-1 were stimulated for 2 h and 4 h with LPS (10 μg/ml), L. acidophilus NCFM (10, 30 and 100 μg/ml) or E. coli Nissle (1, 10, 30 μg/ml). Gene expression was measured by RT-PCR. Symbols indicate mean and SD of 4 independent experiments with cells pooled from 6-10 pups. ***p < 0.001, **p < 0.01, *p < 0.05 compared to "unstimulated cells". Data were normalised to Actb and then to the average of "unstimulated cells 2 h" from the 4 experiments, which was defined to 1.

Age dependent gut maturation does not influence early responses of epithelial cells towards Gram-positive and Gram-negative commensals

To unravel how age influences the IEC responsiveness independently of the microbiota we studied expression of 5 selected genes after in vitro stimulation with L. acidophilus and E. coli in primary IEC isolated from germfree mice at Day-1, post-natal day (PND)1 and PND6 (Figure 5). By keeping the mice germfree the only fluctuations in gene expression observed would be an effect of immune maturation with age. Interestingly, a significant transient drop in expression of Tlr2 was observed at PND1 in unstimulated IEC and L. acidophilus stimulated IEC. This could be a mechanism that allows the G+ microbiota to establish at birth. The lower Tlr2 expression was accompanied by a decreased expression of Il10 and Tnf and an increased expression of Cxcl2 on PND1 in unstimulated cells. However, age did not significantly influence the response towards L. acidophilus and E. coli.

Figure 5
figure 5

Age dependent gut maturation does not influence early responses of epithelial cells towards G+ and G- commensals. Epithelial cells from foetuses at Day-1 and neonates at post natal day (PND) 1 and PND6 from germfree mothers stimulated for 2 h with L. acidophilus NCFM or E. coli Nissle. Bars indicate mean and SD of 4 independent experiments with cells pooled from 6-10 pups (Day-1) or 2-3 pups (PND1 and PND6). ***p < 0.001, **p < 0.01, *p < 0.05. Data were normalised to Actb and then to the average of "Day -1 unstimulated" from the 4 experiments, which was defined to 1.


We here demonstrate that L. acidophilus NCFM and E. coli Nissle potently induce pro-inflammatory genes, a number of tolerance related genes, as well as genes involved in recruitment of immune cells to the GI tract. Although G- bacterial stimulation impacts faster than G+ bacteria, G+ bacterial stimulation elicits a more sustained response giving rise to higher production of cytokines and chemokines. Moreover, E. coli induces transcription of Tlr2, a receptor for many G+ bacteria, and down-regulates transcription of the LPS receptor, TLR4. Tlr2 expression was reduced immediately after birth independently of stimulation, but responses to stimulation were similar in IEC isolated from germ-free mice before and after birth.

Upon E. coli stimulation, foetal IEC expressed genes encoding the anti-inflammatory cytokines IL-10 and TSLP, and the chemokines KC, MIP-2 and MCP-1 potently and rapidly when compared to L. acidophilus stimulation. Relating the transcription data to the amount of protein measured in 18 h culture supernatant suggests a fast and transient up-regulation of cytokine and chemokine production induced by E. coli compared to a slower and more sustained up-regulation induced by L. acidophilus. This could be interpreted as fast induction of endotoxin tolerance during the culture period by E. coli. In line with our earlier studies in Caco2 cells [21], the two distinct bacteria differentially affected Tslp expression: E. coli enhanced Tslp expression, whereas L. acidophilus slightly reduced it. Production of TSLP by IEC is pivotal in maintaining gut homeostasis and indices on lower expression of Tslp in primary IEC from Crohn's disease patients than in healthy individuals have been reported [20]. The first microbial stimuli in neonate life probably affect TSLP production, which impacts on DC in the gut and thereby immune homeostasis. Pro- and anti-inflammatory gene expression as well as Tlr4 downregulation induced by E. coli may be indispensable for balancing the immune system in the gut and, as LPS exhibited similar effects, other G- bacteria may have the same role.

Epithelial cell lines have been shown to develop a cross hypo-responsive phenotype after exposure to TLR2 and TLR4 ligands, probably due to altered signalling through TLR2 and TLR4 [10]. However, no studies have reported how these PRRs are regulated in primary IEC from a sterile gut upon first microbial encounters. We found that E. coli induced up-regulation of Tlr2 and down-regulation of Tlr4. It could be postulated that if the pioneer bacteria colonizing the sterile gut is a G-strain, LPS will down-regulate expression of TLR4 to enable LPS tolerance to be established. However, at 4 h the down-regulation seen at 2 h already approached the basal expression level (non-stimulated). This points towards a transient down-regulation of TLR4 by G- bacteria-derived MAMPs, underlining that the expression of PRRs is tightly regulated in a dynamic fashion in order to initiate a quick response. As expression of Tlr2 was induced by E. coli, G- commensals may induce cross hyper-responsiveness towards G+ commensals in naïve primary IEC, which has not been reported before. Interestingly, Clec7a was down-regulated by E. coli, also pointing towards a yet undescribed cross-regulation of responsiveness to intestinal microorganisms. The induction of tolerance towards both G+ and G- MAMPs has been shown to depend on up-regulation of Tollip, which results in reduced phosphorylation of IL-1 receptor associated kinase (IRAK) and hence reduced NF-κB activation in both primary and immortalized IEC [10, 25]. We measured expression of the genes encoding NFκB1, NFκB2, IKKβ (the IκB kinase), Tollip, and IRAK1. However, only E. coli induced up-regulation of Nfkb1 and Nfkb2 while expression of the other signalling proteins was not modulated by in vitro stimulation. Regulation of signalling relies on phosphorylation of the gene products, protein-protein interactions and protein translocation. Hence, transcriptional regulation is presumably more relevant for the responder cytokine and chemokine genes reported here.

During the first days of life, IEC develop and mature and crypts are formed. It has been demonstrated that germfree rats have impaired formation of crypt cells suggesting that the microbiota supports IEC growth and maturation [26]. E. coli Nissle, but not LPS, up-regulated Tlr2 expression, which may indicate a role for commensals in establishing intestinal integrity [27]. The fact that E. coli Nissle changed the expression of more genes and acted more potently than E. coli-derived LPS reflects that intact E. coli does not, as opposed to LPS, exclusively signal through TLR4. Lotz et al. [19] report higher secretion of MIP-2 and KC upon in vitro LPS stimulation at day -1 before birth compared with PND1 and PND6 in mice harbouring a conventional microbiota due to tolerance acquisition at birth. However, their study does not take into account that age might influence IEC maturation stage. In order to evaluate how IEC develop with age we studied the IEC responsiveness in germfree pups at Day-1, PND1 and PND6. Except for a transient drop in Tlr2 expression at PND1, we did not find strong age-dependent differences in the IEC response. The drop in Tlr2 expression at PND1 may allow G+ commensals to colonise the gut without concomitant danger signals. Based on these findings, foetal IEC isolated from conventional mice represent an attractive supplement to polarised IEC cell line models for comparison of commensal bacteria as they are naïve to stimulation while being physiologically immature IEC and susceptible to tolerance induction. However, as IEC responses are clearly dose-dependent, in vivo experiments are still required to reveal the extent of contact between IEC and bacteria or bacterial components.


Overall, our data confirm the hypothesis that the concomitant induction of chemokines, pro- and anti-inflammatory cytokines in enterocytes by the first-coming bacteria is indeed genus dependent. We conclude that E. coli and LPS may induce LPS-tolerance partly through very rapid and potent up-regulation of chemokine and cytokine genes and down-regulation of Tlr4, whereas stimulation by L. acidophilus Gram-positive commensals may be potentiated by the up-regulation of Tlr2 by Gram-negative bacteria.


Preparation of UV-killed bacteria

L. acidophilus NCFM was grown anaerobically in de Man, Rogosa, and Sharpe broth (Merck, Darmstadt, Germany) and E. coli Nissle aerobically in Luria-Bertani broth (Merck) overnight at 37 C. The cultures were harvested, washed twice in sterile phosphate-buffered saline (PBS) (Lonza, Basel, Switzerland) and re-suspended in 1/10 the growth volume of PBS. The bacteria used for in vitro stimulation were killed by a 40-min exposure to UV-light and stored at -80 C, as we from earlier studies have concluded that live and UV-killed bacteria elicit similar responses in epithelial cell lines [21]. Concentration was determined by lyophilisation. Endotoxin levels in L. acidophilus NCFM preparations were determined with the Pyrochrome kit (Ass. of Cape Cod, East Falmouth, MA, USA) to < 0.10 EU/ml in the highest concentration of stimuli used in cell culture experiments.

Animal experiments

Conventional and germfree Swiss Webster mice were purchased from Taconic (Lille Skensved, Denmark), and housed under either specific pathogen-free conditions or in germfree isolators (as previously described [28]). Absence of colonising bacteria in germfree mice was confirmed by cultivation of faecal samples. Foetal IEC were isolated from foetuses derived from 4 conventional mothers. Caesarean section was performed on full-term pregnant females at gestation day 19 (referred to as Day -1), foetuses were killed immediately, and subsequently the small intestine was removed. Cells were pooled from 6-10 foetuses. Small intestinal tissue of neonatal mice was obtained from spontaneously delivered pups from germfree mothers at PND1 and PND6. Cells were pooled from 2-3 pups.

Isolation of primary epithelial cells

The small intestine was placed in Hanks buffered saline (HBSS, Lonza) and cut into small pieces. The epithelial cells were detached from the underlying tissue by incubation in fresh HBSS containing 2mM EDTA at 37°C for 10 minutes with vigorously shaking every 3 minutes. Residual tissue was removed by passing the suspension through a 70μm filter. Cells were subsequently washed in cold PBS and re-suspended in culture medium (RPMI 1640 supplemented with 100 U/ml penicillin, 100μg/ml streptomycin, 2 mM L-glutamine, 10% (v/v) heat-inactivated FCS, all from Lonza). Cells were seeded in 48-well tissue culture plates (Nunc, Roskilde, Denmark) at 4x105cells/500 μl/well. Fifty μl/well of bacteria or LPS O26:B6 (Sigma-Aldrich, St. Louis, MO, USA) were then added to obtain final concentrations of 1, 10, 30 or 100 μg/ml as indicated. The stimulus concentrations were chosen based on optimization experiments showing that smaller amounts of E. coli Nissle than L. acidophilus NCFM were required for stimulation of IEC. The cells were incubated for 2 h, 4 h or 18 h at 37°C in 5% CO2 and subsequently harvested by centrifugation and frozen in RNAlater (Qiagen, Hilden, Germany). The purity of the IEC was checked by staining for the lymphocyte marker CD45 (PE-labelled rat anti-mouse CD45 purchased from Abcam, Cambridge, UK) by flow cytometry. IEC contained 0.8 ± 0.4% CD45+ cells at PND6 (staining with a matched isotype antibody (IgG2b) subtracted). Viability and cell numbers of IEC were determined by staining the cell nuclei with propidium iodide before and after cell lysis (reagents from Chemometec, Allerød, Denmark) and analysed with NucleoCounter (Chemometec). Viability of the IEC was evaluated during culture. We found that 23.5 ± 5.0% of freshly purified IEC were dead, 45.3 ± 2.9% after 2 h, 65.7 ± 6.5% after 4 h, 62.3 ± 6.6% after 7 h and 73.3 ± 7.6% after 24 h of culture.

RNA purification and amplification

Samples were spun at 3000 g, 5 min, 4°C to remove RNAlater. RNA was extracted from the cell pellet using Mini Kit from Qiagen following the supplier's protocol for animal cells. The quantity and purity of extracted RNA was evaluated by Nanodrop spectroscopy (Thermo Scientific, Wilmington, DE, USA). cDNA was produced from app. 500 ng total RNA using High-Capacity cDNA Reverse Transcriptase Kit (Applied Biosystems, Foster City, CA, USA) according to the instructions of the manufacturer.

Gene expression analysis by real-time polymerase chain reaction

For quantitative real-time polymerase chain reaction (RT-PCR), TaqMan Arrays (384-well Micro Fluidic Cards) were designed with the 20 TaqMan Gene Expression Assays (Applied Biosystems) listed in Table 1, permitting 8 randomized samples tested in duplicates on each card. The genes studied were chosen based on experiments comparing expression of more than 90 immune-related genes in intestinal cells of germfree and conventionally colonized mice (unpublished data). Genes with changed expression were included in the present study, as they were suspected to be affected by bacterial stimuli. To each cDNA sample (50 ng RNA in 50 μl) was added 50 μl TaqMan Universal PCR Master Mix (Applied Biosystems). Samples were mixed and loaded on the cards, which were centrifuged at 300 g, 1 min, 4°C and sealed. The PCR amplification was performed in standard mode using 7900HT Fast Real-time PCR system (Applied Biosystems). Additionally, single gene expression of Cxcl2, Tnf, Il10, Il6 and Actb was analysed (TaqMan Gene Expression Assays listed in Table 1). For each sample, 2 μl cDNA (3 ng/μl) was amplified in duplicates under universal fast thermal cycling parameters (Applied Biosystems) using TaqMan Fast Universal PCR Master Mix (Applied Biosystems) in a total reaction volume of 10 μl. Relative quantification (fold increase) was calculated by the comparative CT method. Briefly, CT is the threshold cycle, which is the cycle number where the amplified target reaches the defined threshold. The expression is normalised to the expression of a reference gene [CT = CT(target)-CT(reference)]. We evaluated Actb and 18S rRNA, which gave comparable results and chose to use Actb as reference gene. The efficiency of the PCR assays was tested by serial dilution of samples for 12 of the 24 genes on the TLDA arrays and was close to 100% (curve slopes between 3.3 and 3.4). Amplification specificity was similar for reference and target genes. The specificity of the assays was ensured by choosing intron-spanning TaqMan probes. In each dataset, a specific group of samples was used as calibrator (indicated in figure legends). Comparative gene expression was calculated as [CT = CT(target)- CT(calibrator))] and fold change (2- CT) values were plotted. Since CT(calibrator) = 0, Fold change = 1 for the calibrator group.

Table 1 Genes measured by Taqman low density array and (if bold also) by Taqman gene expression assays

Cytokine quantification in culture supernatants

The production of MIP-2, IL-10, -6, TNF-α was analysed using commercially available ELISA kits (R & D systems, Minneapolis, MN, USA).

Statistical analysis

GraphPad Prism version 4.03 (GraphPad Software, San Diego, CA, USA) was used to perform two-way ANOVA with Bonferroni post-test. Although fold change is plotted in gene expression experiments, statistical analysis was performed on CTvalues as these are assumed normally distributed as opposed to the fold change values.


  1. Eckburg PB, Bik EM, Bernstein CN, Purdom E, Dethlefsen L, Sargent M, Gill SR, Nelson KE, Relman DA: Diversity of the human intestinal microbial flora. Science. 2005, 308: 1635-1638. 10.1126/science.1110591.

    Article  PubMed Central  PubMed  Google Scholar

  2. Hooper LV, Wong MH, Thelin A, Hansson L, Falk PG, Gordon JI: Molecular analysis of commensal host-microbial relationships in the intestine. Science. 2001, 291: 881-884. 10.1126/science.291.5505.881.

    Article  CAS  PubMed  Google Scholar

  3. Favier CF, Vaughan EE, De Vos WM, Akkermans ADL: Molecular monitoring of succession of bacterial communities in human neonates. Appl Environ Microbiol. 2002, 68: 219-226. 10.1128/AEM.68.1.219-226.2002.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  4. Lefrancois L, Goodman T: In vivo modulation of cytolytic activity and thy-1 expression in TCR-gamma delta+ intraepithelial lymphocytes. Science. 1989, 243: 1716-1718. 10.1126/science.2564701.

    Article  CAS  PubMed  Google Scholar

  5. Walton KLW, He J, Kelsall BL, Sartor RB, Fisher NC: Dendritic cells in germ-free and specific pathogen-free mice have similar phenotypes and in vitro antigen presenting function. Immunology Letters. 2006, 102: 16-24. 10.1016/j.imlet.2005.07.001.

    Article  CAS  PubMed  Google Scholar

  6. Ismail AS, Hooper LV: Epithelial cells and their neighbors. IV. Bacterial contributions to intestinal epithelial barrier integrity. Am J Physiol Gastrointest Liver Physiol. 2005, 289: G779-G784. 10.1152/ajpgi.00203.2005.

    Article  CAS  PubMed  Google Scholar

  7. Kohler T, McCormick BA, Walker WA: Bacterial-enterocyte crosstalk: Cellular mechanisms in health and disease. J Pediatr Gastroenterol Nutr. 2003, 36: 175-185. 10.1097/00005176-200302000-00005.

    Article  PubMed  Google Scholar

  8. Mavris M, Sansonetti P: Epithelial cell responses. Best Pract Res Clin Gastroenterol. 2004, 18: 373-386. 10.1016/j.bpg.2003.10.007.

    Article  CAS  PubMed  Google Scholar

  9. Shao L, Serrano D, Mayer L: The role of epithelial cells in immune regulation in the gut. Sem Immunol. 2001, 13: 163-175. 10.1006/smim.2000.0311.

    Article  CAS  Google Scholar

  10. Otte JM, Cario E, Podolsky DK: Mechanisms of cross hyporesponsiveness to toll-like receptor bacterial ligands in intestinal epithelial cells. Gastroenterology. 2004, 126: 1054-1070. 10.1053/j.gastro.2004.01.007.

    Article  CAS  PubMed  Google Scholar

  11. Philpott DJ, Girardin SE: The role of Toll-like receptors and Nod proteins in bacterial infection. Mol Immunol. 2004, 41: 1099-1108. 10.1016/j.molimm.2004.06.012.

    Article  CAS  PubMed  Google Scholar

  12. Abreu MT, Arnold ET, Thomas LS, Gonsky R, Zhou Y, Hu B, Arditi M: TLR4 and MD-2 expression is regulated by immune-mediated signals in human intestinal epithelial cells. J Biol Chem. 2002, 23: 20431-20437. 10.1074/jbc.M110333200.

    Article  Google Scholar

  13. Abreu MT, Vora P, Faure E, Thomas LS, Arnold ET, Arditi M: Decreased expression of Toll-like receptor-4 and MD-2 correlates with intestinal epithelial cell protection against dysregulated proinflammatory gene expression in response to bacterial lipopolysaccharide. J Immunol. 2001, 167: 1609-1616.

    Article  CAS  PubMed  Google Scholar

  14. Cario E, Brown D, Mckee M, Lynch-Devaney K, Gerken G, Podolsky DK: Commensal-associated molecular patterns induce selective toll-like receptor-trafficking from apical membrane to cytoplasmic compartments in polarized intestinal epithelium. Am J Pathol. 2002, 160: 165-173.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  15. Suzuki M, Hisamatsu T, Podolsky DK: Gamma interferon augments the intracellular pathway for lipopolysaccharide (LPS) recognition in human intestinal epithelial cells through coordinated up-regulation of LPS uptake and expression of the intracellular Toll-like receptor 4-MD-2 complex. Infect Immun. 2003, 71: 3503-3511. 10.1128/IAI.71.6.3503-3511.2003.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  16. Cario E, Podolsky DK: Differential alteration in intestinal epithelial cell expression of Toll-like receptor 3 (TLR3) and TLR4 in inflammatory bowel disease. Infect Immun. 2000, 68: 7010-7017. 10.1128/IAI.68.12.7010-7017.2000.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  17. Lan JG, Cruickshank SM, Singh JC, Farrar M, Lodge JP, Felsburg PJ, Carding SR: Different cytokine response of primary colonic epithelial cells to commensal bacteria. World J Gastroenterol. 2005, 11: 3375-3384.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  18. Rakoff-Nahoum S, Paglino J, Eslami-Varzaneh F, Edberg S, Medzhitov R: Recognition of commensal microflora by toll-like receptors is required for intestinal homeostasis. Cell. 2004, 118: 229-241. 10.1016/j.cell.2004.07.002.

    Article  CAS  PubMed  Google Scholar

  19. Lotz M, Gutle D, Walther S, Menard S, Bogdan C, Hornef MW: Postnatal acquisition of endotoxin tolerance in intestinal epithelial cells. J Exp Med. 2006, 203: 973-984. 10.1084/jem.20050625.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  20. Rimoldi M, Chieppa M, Salucci V, Avogadri F, Sonzogni A, Sampietro GM, Nespoli A, Viale G, Allavena P, Rescigno M: Intestinal immune homeostasis is regulated by the crosstalk between epithelial cells and dendritic cells. Nat Immunol. 2005, 6: 507-514. 10.1038/ni1192.

    Article  CAS  PubMed  Google Scholar

  21. Zeuthen LH, Fink LN, Frokiaer H: Epithelial cells prime the immune response to an array of gut-derived commensals towards a tolerogenic phenotype through distinct actions of thymic stromal lymphopoietin and transforming growth factor-beta. Immunology. 2008, 123: 197-208.

    PubMed Central  CAS  PubMed  Google Scholar

  22. Sanders ME, Klaenhammer TR: Invited review: the scientific basis of Lactobacillus acidophilus NCFM functionality as a probiotic. J Dairy Sci. 2001, 84: 319-331.

    Article  CAS  PubMed  Google Scholar

  23. Herre J, Marshall ASJ, Caron E, Edwards AD, Williams DL, Schweighoffer E, Tybulewicz V, Sousa CR, Gordon S, Brown GD: Dectin-1 uses novel mechanisms for yeast phagocytosis in macrophages. Blood. 2004, 104: 4038-4045. 10.1182/blood-2004-03-1140.

    Article  CAS  PubMed  Google Scholar

  24. Saegusa S, Totsuka M, Kaminogawa S, Hosoi T: Candida albicans and Saccharomyces cerevisiae induce interleukin-8 production from intestinal epithelial-like Caco-2 cells in the presence of butyric acid. FEMS Immunol Med Microbiol. 2004, 41: 227-235. 10.1016/j.femsim.2004.03.006.

    Article  CAS  PubMed  Google Scholar

  25. Melmed G, Thomas LS, Lee N, Tesfay SY, Lukasek K, Michelsen KS, Zhou Y, Hu B, Arditi M, Abreu MT: Human intestinal epithelial cells are broadly unresponsive to Toll-like receptor 2-dependent bacterial ligands: implications for host-microbial interactions in the gut. J Immunol. 2003, 170: 1406-1415.

    Article  CAS  PubMed  Google Scholar

  26. Gordon JI, Hooper LV, McNevin MS, Wong M, Bry L: Epithelial cell growth and differentiation. III. Promoting diversity in the intestine: conversations between the microflora, epithelium, and diffuse GALT. Am J Physiol Gastrointest Liver Physiol. 1997, 273: G565-G570.

    CAS  Google Scholar

  27. Cario E, Gerken G, Podolsky DK: Toll-Like receptor 2 controls mucosal inflammation by regulating epithelial barrier function. Gastroenterology. 2007, 132: 1359-1374. 10.1053/j.gastro.2007.02.056.

    Article  CAS  PubMed  Google Scholar

  28. Knudsen S, Saadbye P, Hansen LH, Collier A, Jacobsen BL, Schlundt J, Karlstrom OH: Development and testing of improved suicide functions for biological containment of bacteria. Appl Environ Microbiol. 1995, 61: 985-991.

    PubMed Central  CAS  PubMed  Google Scholar

Download references


The authors thank Heidi Letting, Camilla S. Dall, Lisbeth B. Rosholm and Anne ørngren whose expert technical assistance is greatly appreciated. This work was supported by the Globalisation Funds, Technical University of Denmark, through FoodDTU.

Author information

Authors and Affiliations


Corresponding author

Correspondence to Lisbeth N Fink.

Additional information

Authors' contributions

LHZ participated in the study, performed data analysis and wrote the manuscript. LNF and SBM designed and performed the study, carried out statistical analyses and edited the manuscript. MBK, TRL and CN participated in cell experiments and expression studies. HF participated in the design of the study and edited the manuscript. All authors read and approved the final manuscript.

Louise H Zeuthen, Lisbeth N Fink, Stine B Metzdorff contributed equally to this work.
