Peripheral blood T Regulatory cell counts may not predict transplant rejection
BMC Immunologyvolume 11, Article number: 40 (2010)
Recent evidence shows that allograft survival rates show a positive correlation with the number of circulating T regulatory cells (Tregs). This study investigated both the number and the cytokine profiles exhibited by Foxp3+ Tregs in blood, spleen and lymph nodes of Lewis rat recipients of BN rat cardiac allografts after a single-dose of Rapamycin (RAPA).
Rats were divided into three groups: control group (containing healthy control and acute rejection group), and recipients treated with a single dose of RAPA on either Day 1 (1D group)or Day 3 (3D group) post-transplant. We analyzed the number of Foxp3+Tregs and the expression of Foxp3 and cytokines in the peripheral blood and the peripheral lymphoid tissues. No difference was found in the numbers of circulating Foxp3+ Tregs between these three groups. RAPA administration significantly increased Foxp3 expression in peripheral lymphoid tissues after a single dose of RAPA on Day 3 post-transplant. Foxp3+Tregs inhibited the activity of effector T cells (Teff) via the secretion of TGF-β1.
The number of Tregs in the recipient's blood may not be a good predictor of transplant rejection. Foxp3+Tregs inhibit the activity of Teff cells mainly in the peripheral lymphoid tissues.
Organ transplantation remains the only solution available for the treatment of numerous end-stage diseases. The administration of immunosuppressive drugs following solid organ transplantation is essential in order to control the activation of alloreactive T cells and so prevent rejection of the graft. Although calcineurin inhibitors (CNI), anti-proliferative agents and steroids all have proven efficacy, immunosuppression after heart transplantation may still be improved, with respect to increased efficacy (reduced incidence of acute rejection and chronic allograft vasculopathy (CAV) and reduced toxicity (less renal failure and malignancy). The proliferation signal inhibitor (PSI) Rapamycin (RAPA), and its derivative everolimus, belong to a new class of potent therapeutic agents that promise such an improvement. Research has shown that delayed treatment with RAPA effectively slows the progression of both allograft rejection  and pre-existing CAV in both rat  and non-human primate grafts [3, 4]. Recently, ex vivo studies have shown that, in both humans and mice, RAPA selectively blocks the proliferation of effector T cells (Teff) while at the same time, expanding the CD4+CD25+FoxP3+ Treg population .
Tregs control various immune responses and play an important role in inhibiting transplant rejection . It has been reported that graft survival rates are positively correlated with the number of circulating Tregs[7, 8], and that the adoptive transfer of Tregs (polyclonally expanded in vivo using low-dose RAPA) promotes tolerance to allogeneic pancreatic islet grafts .
In a retrospective study, Segundo et al found that RAPA (but not CNI) induces an increase in the number of circulating Tregs in stable renal transplant recipients. Therefore, we analyzed both the number and the cytokine expression levels in Foxp3+ Tregs in the blood, spleen and lymph nodes of rat transplant recipients after a single post-operative dose of RAPA. Our data show that Foxp3+ Tregs inhibit Teff cell activity in the peripheral lymphoid tissues by secreting cytokines such as TGF-β1. We also suggest that the number of circulating Tregs may not be a suitable predictor of transplant rejection.
Rats and heart transplantation
Donor male Brown Norway (BN, RT-1n) and Lewis (RT-11) recipient rats weighing 150-200 g were purchased from Experimental Animal Centre of West China (Sichuan University, Chengdu, China). Rats were divided into three groups as follows: three rats were used as healthy controls; nine rats underwent cardiac allograft transplantation with no follow-up treatment (acute rejection (Con) group); and 24 rats underwent cardiac allograft transplantation followed by a single-dose of RAPA given orally either 1 day (1D group) or 3 days (3D group) post transplantation. Ethical approval for the work was given by the University Committee on Use and Care of Laboratory Animals at Sichuan University.

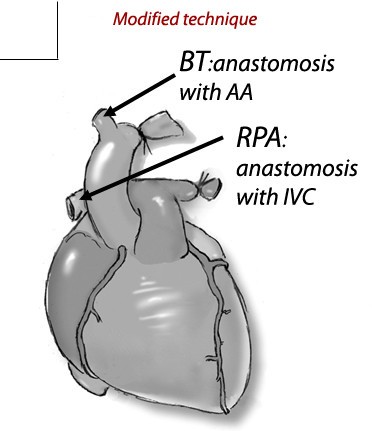

We used a modified heart abdominal transplantation  and donor hearts were harvested according to the method of Ono and Lindsey . Briefly, the aortic arch was ligated between the brachiocephalic trunk and the left common carotid artery. The vessel was then cut distal to the ligature. The brachiocephalic trunk was transected, leaving 2-3 mm attached to the aortic arch. The left pulmonary artery was ligated and the right pulmonary artery transected, leaving 2-3 mm attached to pulmonary artery. The abdomen was then opened by a long midline incision. The abdominal aorta was clamped proximally and distally and a 3-0 silk tie looped around both distal vessels and kept loose. The donor brachiocephalic trunk was connected end-to-side to the recipient abdominal artery. When finishing the arterial anastomosis, the silk was tied and the distal vascular clamp was moved to the proximal inferior vena cava. The donor right pulmonary artery was then connected end-to-side to the recipient inferior vena cava (Fig 1).
Rapamycin treatment and analysis of whole blood RAPA concentrations
A single dose of Rapamycin (RAPA; 1 mg/ml, NCPC New Drug Research and Development Co., Ltd.) was given intragastrically at 8 mg/kg on either Day 1 (1D group) or Day 3 (3D group) post-transplantation. Physiological saline was given to the Con group. At least three independent experiments were performed.
Whole-blood trough RAPA concentrations were dynamically determined using a modified high-performance liquid chromatography spectrometry method .
Flow Cytometry Analysis
Peripheral Blood samples were taken from the Con group 1, 3 and 6 days after transplantation and from the 1D and 3D groups 1, 3, 7 and 10 days after treatment. The percentage of CD3+CD25+Foxp3+ T cells was determined using three-color flow cytometry. Briefly, lymphocytes from peripheral blood were collected and suspended in phosphate-buffered saline (PBS) and then labeled with an optimal concentration of FITC-conjugated mouse anti-rat CD3 antibody (G4.18; BD Pharmingen, California, USA) and Allophycocyanin (APC) anti-rat CD25 (OX-39; eBioscience, San Diego, USA) in the dark for 30 minutes. Intracellular staining was performed using a PE anti-mouse/rat/human Foxp3 Flow Kit (150D, BioLegend, San Diego, USA). Isotype-matched controls were run concurrently.
Hearts, spleens and lymph nodes were harvested from the Con group 1, 3 and 6 days after transplantation (POD 1, 3, 6) and from the 1D and 3D groups 1, 3, 7 and 10 days after treatment. Formalin-fixed, paraffin-embedded tissue sections (4-μm) were stained with a 1:100 dilution of affinity purified anti-muse/rat Foxp3 (FJK-16s, eBioscience) followed by incubation with the respective biotinylated secondary antibodies. Staining was developed using an avidin-biotin-based detection system and visualized with peroxidase or DAB (Dako REAL™ EnVison™ Detection System, Denmark A/S). The number of stained cells in each section was counted in 10 ocular grid areas at a magnification of ×200 and the total was divided by the number of ocular grid areas.
RNA preparation and real-time PCR
The levels of Foxp3, IL-10, TGF-β1 and β-actin mRNA were analyzed by quantitative real-time RT-PCR using a Light Cycler (Multicolor Real-Time PCR detection system). Total RNA isolation and real-time PCR was carried out according to the manufacturer's instructions. Briefly, each 20 μl of reaction volume contained 3 mM MgCl2, Light Cycler Hotstart DAN SYBR Green I Mix, specific primer pairs, and 5 μl of cDNA. PCR cycling conditions were 95°C for 3 minutes followed by 45 cycles at 95°C for 15 seconds, 60°C for 15 seconds and 72°C for 15 seconds. Primers were designed based on the reported cDNA sequences; the expected fragment sizes for these genes are specified in Table 1.
Student's t-test was used for paired and unpaired analyses. A statistical evaluation for graft survival was performed using the Kaplan-Meier test. p < 0.05 was considered statistically significant. All experimental data were representative of three independent experiments.
Effect of delayed RAPA treatment on heart allograft survival
The donor heart beat strength was checked on a daily basis. Untreated Lewis rat recipients of BN heart allografts had a mean graft survival time of 5.2 ± 1.3 days. Rats given a single dose of RAPA on either Day 1 or Day 3 post transplant showed significantly prolonged graft survival times of 11 ± 1.5d (p < 0.05) or 14 ± 2d (p < 0.05), respectively. Furthermore, the graft survival rate in D3 group was significantly longer than that in D1 group (P < 0.05). We found RAPA was below its effective concentration (5-15 ng/ml) 5 days after treatment commenced (Fig 2).
Peripheral Blood Treg Counts
We used Flow Cytometry to count the number of circulating CD3+CD25+Foxp3+ Tregs. We were surprised to find no real differences in the number of circulating CD3+CD25+Foxp3+ Tregs between the RAPA-treated group and the normal controls or the acute rejection group (p > 0.05) (Fig 3 and Fig 4).
Expression levels of Foxp3 differ with time of RAPA administration post-transplant

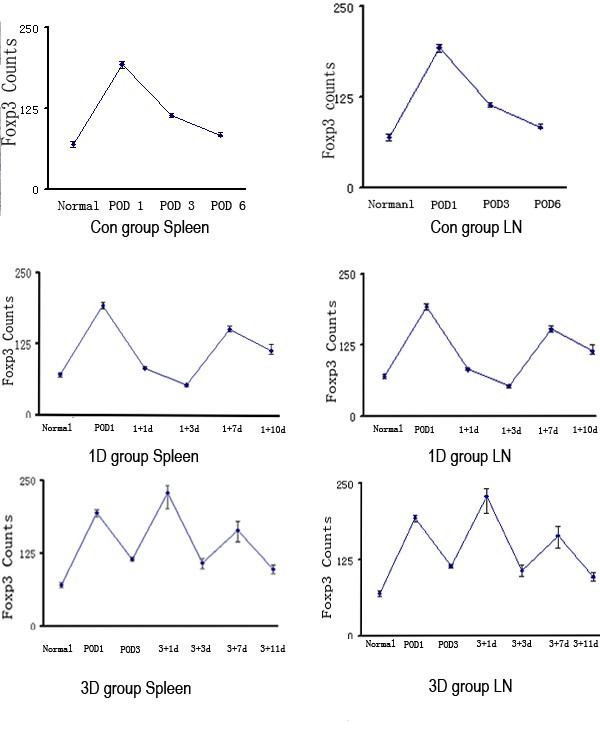

To characterize the Foxp3+ Tregs in the peripheral lymphatic organs, we analyzed Foxp3 expression using immunohistochemistry and real-time PCR. No Foxp3 expression was seen in the rejected heart allografts. The number of Foxp3+ Tregs increased by Day 1 post-transplant in the spleens compared with normal spleens. From Day 2 post-transplant, Foxp3+ Treg numbers in the spleens of the acute rejection group decreased. In the 1D group, the number of Foxp3 Treg cells in the spleens decreased on Days 1-3, increased on Days 3-7 and then decreased again. However, the 3D group showed a different pattern. Foxp3 Treg cell numbers showed a peak on Day 1, decreased on Days 1-3, and peaked again on Day 7 before decreasing again. It is interesting that the time of RAPA administration post-transplant has different effects upon Foxp3 expression by the Tregs. It is also noteworthy that Foxp3 expression by the Tregs was higher in the lymph nodes than in the spleens. (Fig 5, additional file 1 and 2)
Treg suppression of Teff cell activities
Tregs are fundamental in controlling various immune responses and many different subsets of Tregs have been reported. Among these subsets are the induced Tregs (iTregs) that produce high levels of IL-10 and inhibit Teff cells. Foxp3+ Tregs also inhibit Teff cells by secreting TGF-β1/IL-10 . To assess the role of IL-10 and TGF-β1 in our experiments, real-time PCR was used to examine the expression of both IL-10 and TGF-β1 mRNA in recipient Lewis rat spleens. We found that the expression pattern of TGF-β1 mRNA was the same as that of Foxp3 mRNA (Fig 6). Both displayed a peak on Day 1, decreased on Days 1-3, and peaked again on Day 7 before decreasing again. However, this was not the case for IL-10 mRNA.
Recently, it has been shown that RAPA selectively blocks the proliferation of effector T cells while at the same time expanding the population of both human and mouse CD4+CD25+FoxP3+ Tregs ex vivo . In patients transplanted with heart , lung , liver  or kidney  grafts, graft survival rates showed a positive correlation with the number of circulating Tregs. Therefore, in this study, we monitored the number of circulating CD3+CD25+Foxp3+ Tregs in the peripheral blood of rats transplanted with cardiac allografts. We show that RAPA did not affect the number of circulating Tregs when compared with normal controls, which is in agreement with the study of Segundo et al, but contrary to others. This conflict may be due to the fact that that several of these studies compared patients receiving CNI-based immunosuppression with those receiving RAPA. Our results (which include a healthy control group for comparison) suggest that RAPA has no deleterious effect on Treg numbers. However, the number of Tregs in patients treated with CNI appears to be reduced compared with healthy controls . Therefore, Treg cell numbers in peripheral blood may not be a suitable predictor for transplant rejection.
It is known that Foxp3+ nTregs are not only found in recipient lymphoid tissue after transplantation , but also at the graft site. We hypothesized that lymphoid-tissue Tregs might be effective at blocking the initiation of an aggressive response against the graft, whereas at the graft site they may inhibit the activity of aggressive cells that have escaped regulation and migrated into the graft tissue. Therefore, we examined the Foxp3 expression in both the allograft and lymphoid tissues using IHC and real-time PCR. We found no Foxp3 expression in the allograft hearts at the selected time point, but the expression of Foxp3 mRNA and protein increased significantly Day 1 post-transplant in the Con group.
We then examined the number of Tregs/CD4+ T cells in the peripheral blood, spleen, lymph nodes and thymus of healthy rats using flow cytometry. We found the greatest number of Tregs in the lymph nodes (3.66 ± 0.84%) followed by spleen (2.24% ± 1.28%), indicating that the lymph nodes are the major site of Tregs activity.
When a single dose of RAPA was given on Day 3 post transplantation, Foxp3 expression was increased. This suggests that lymphoid tissue might be the site where Tregs suppress activated effector T cells. While, when RAPA was given on Day 1 post transplantation, Fxop3 expression was decreased. This was conformity with Wang et al. 1992, Poston et al. 1999, Ikonen et al. 2000 and Dambrin et al.2003, which delayed treatment with RAPA effectively slows the progression of both allograft rejection. Furthermore, RAPA, in clinical treatment, is not traditionally used after transplantation at once.
The efficacy of RAPA in preventing acute rejection is known to be related to trough drug levels[20, 21]. Therefore, we assessed the pharmacodynamics of RAPA using HPLC. We found RAPA was below its effective concentration (5-15 ng/ml) 5 days after treatment (Fig 2). Therefore, the second peak in Foxp3+ Treg cell numbers seen in the 3D group at Day 7 may reflect the normal alloresponse in the Lewis rat recipients. In addition, the last treatment time point should be in 5 days.
There are three general modes of suppression (cell contact-dependent suppression, the production of inhibitory cytokines or the consumption of limiting growth factors) that may explain the inhibitory actions of Tregs on activated T cells . It has been proposed that the production of inhibitory cytokines[14, 23] such as IL-10 and TGF-β1 play an important role in this suppression. However, measurements of cytokine concentrations in cell culture supernatants are typically very low, and picomolar concentrations are unlikely to trigger cellular responses. Therefore, biologically active cytokine concentrations may only be achieved in the microenvironments surrounding the secreting cells. Therefore, we examined the IL-10 and TGF-β1 mRNA expression by Tregs both in vivo and in vitro. When RAPA was given on Day 1 post transplantation, Foxp3 expression was decreased while IL-10 expression was increased. However, on Day 3 post transplantation both Foxp3 and TGF-β1 expression increased, but not that of IL-10 (Fig 6). These results support the suggestion that there is a role for cell-surface or secreted TGF-β1 in CD4+CD25+ Treg-mediated suppression [24–28].
Interestingly, our data show the time of RAPA administration has differing effects upon Foxp3 expression and cytokine secretion by Tregs. As far as we are aware, this is the first time that this has been reported. We propose that RAPA administration on Day 1 post-transplant enhances iTreg proliferation, which then suppresses Teff cells by secreting IL-10, while RAPA administration on Day 3 post-transplant increases nTreg proliferation that in turn, inhibits Teff cells by secreting TGF-β1. The mechanisms responsible for these effects need further investigation.
In conclusion, our data indicate that Foxp3+Tregs inhibit Teff cell activity within the peripheral lymphatic tissues by secreting cytokines such as TGF-β1. We also show that the number of circulating Tregs may not be a suitable predictor of transplant rejection.
